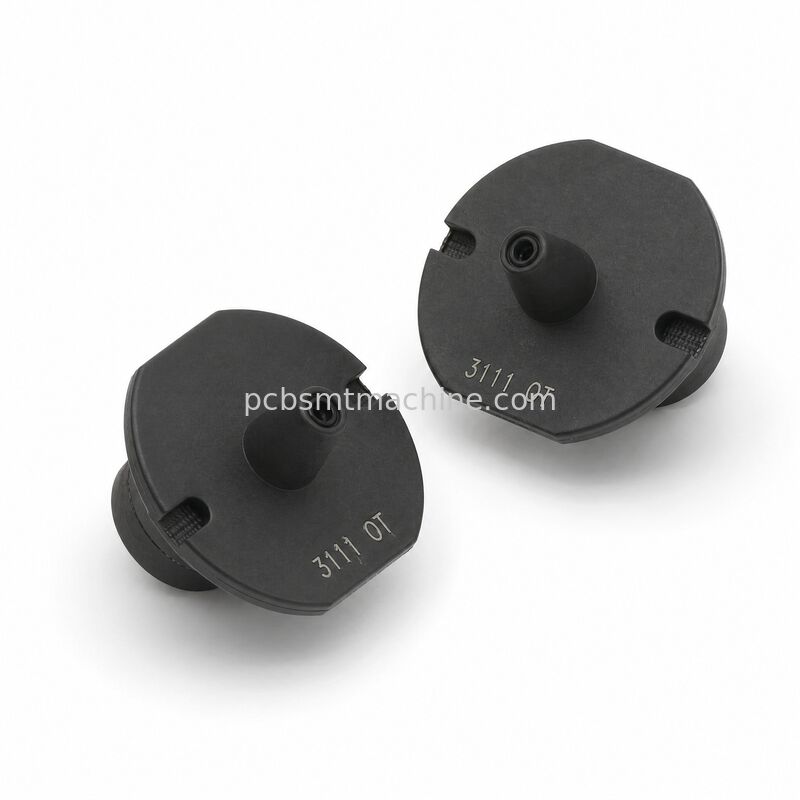

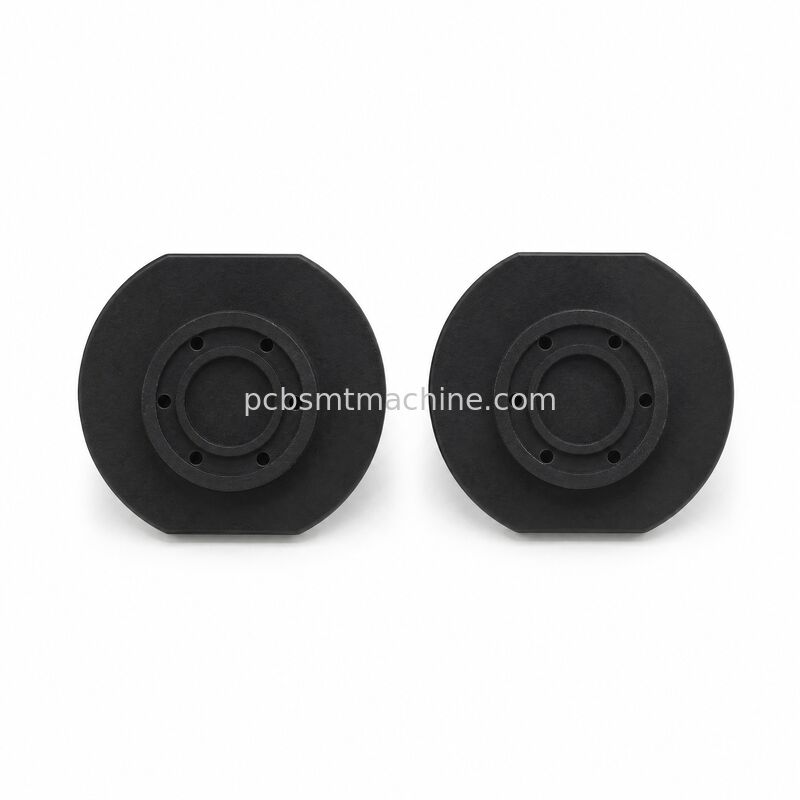

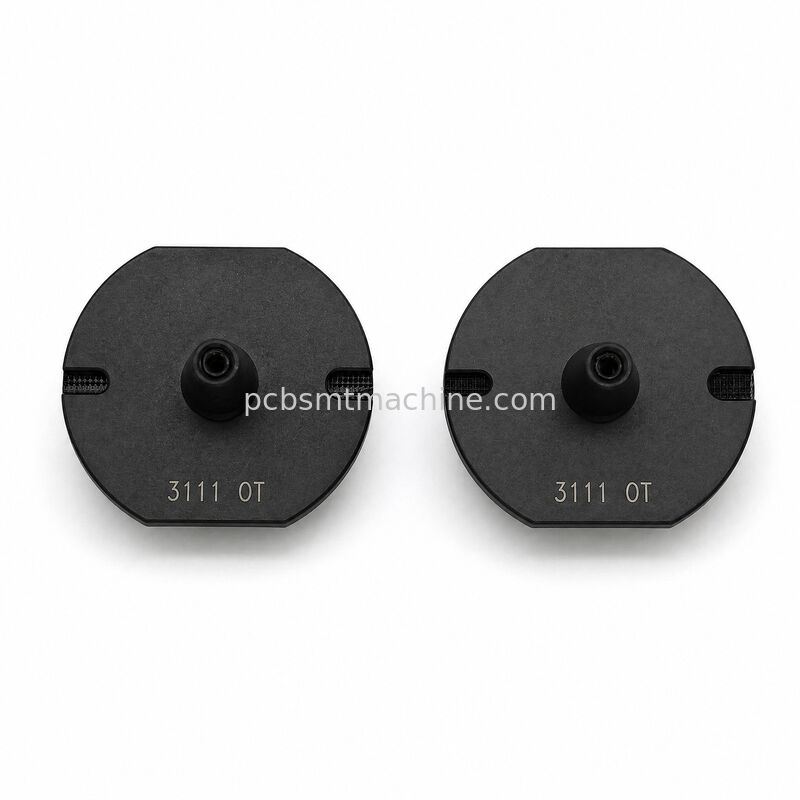

Panasonic H03 OEM Nozzle for SMT Captive Screw Ø 18mm (Mark: 3111 OT)

1.Product Introduction

This Panasonic H03 OEM custom nozzle (Engraved Mark: 3111 OT) is tailored for heavy odd-form components including LGA 4677 CPU socket and Ø18mm SMT captive screw. It fully replaces the traditional polyester tape-based handling process, enabling consumable-free direct pickup and placement.

Fully compatible with Panasonic NPM/CM402/CM602 pick-and-place machines, this tape-free SMT nozzle is widely applied in SMT production lines for server motherboards and industrial power modules, effectively solving the pain points of traditional tape process, such as high consumable cost and placement offset.

2.Core Specifications

3.Core Advantages

1. Consumable-Free Cost Reduction: Eliminate recurring tape purchasing cost, avoid adhesive residue contamination, and boost placement yield up to 99.9%
2. Stable Customized Suction: Optimized suction structure for non-planar odd-form components, ensuring stable pickup without part dropping
3. Drop-In Compatibility: Standard H03 interface, no machine modification required, complete process switch within 1 hour
4. Fast Custom Delivery: 8-10 days lead time from demand confirmation to mass delivery, support full-line adaptation for multi-type components

4.Additional Notes
