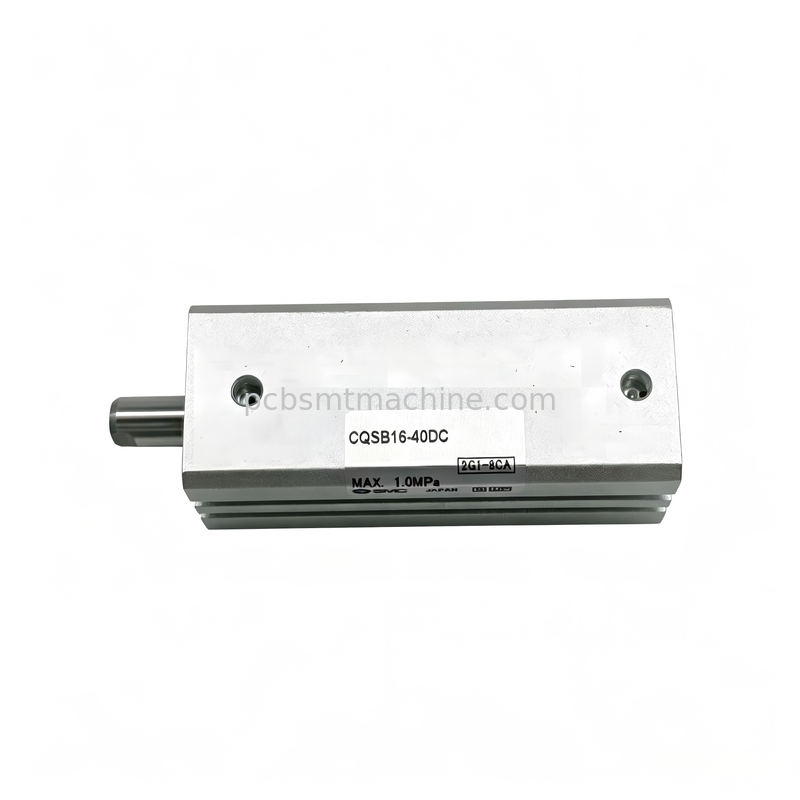

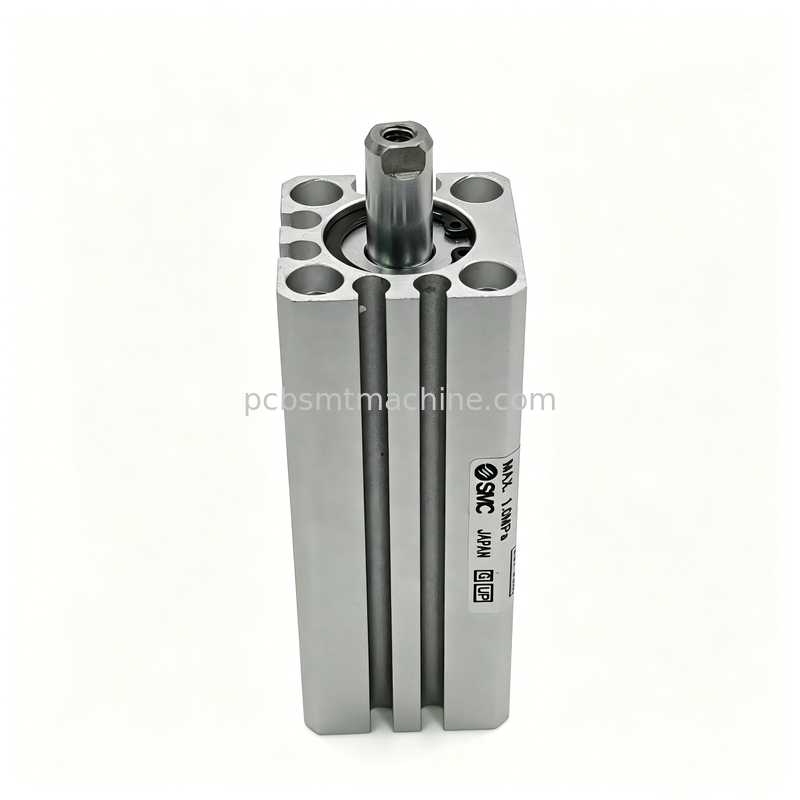

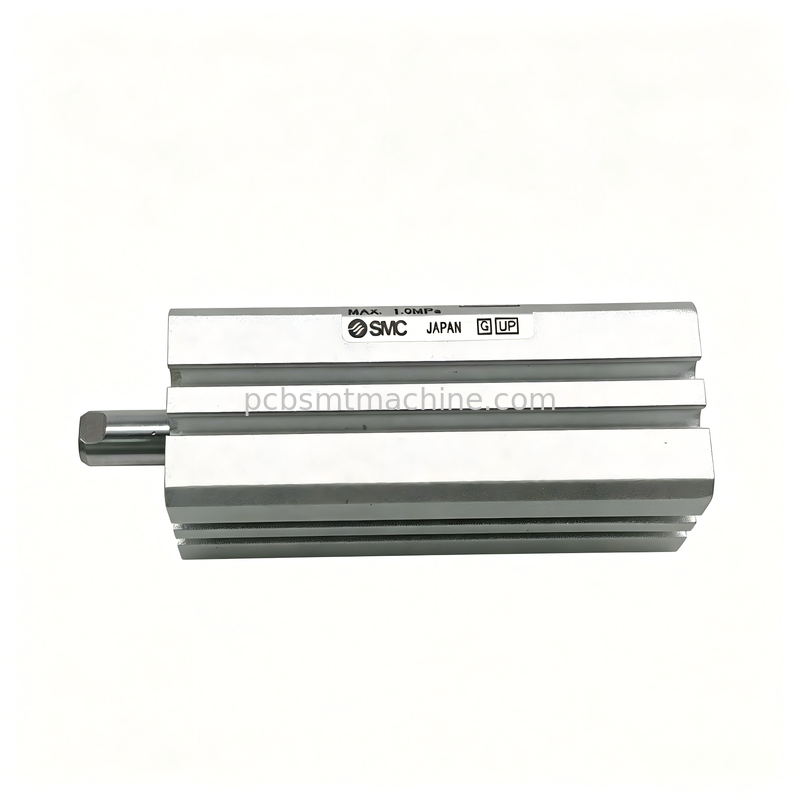

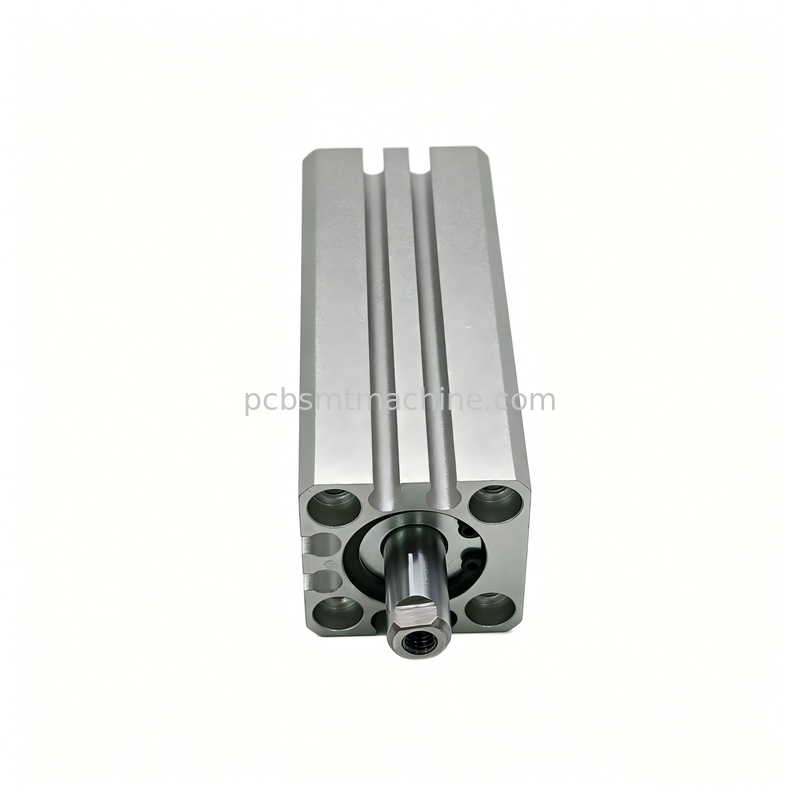

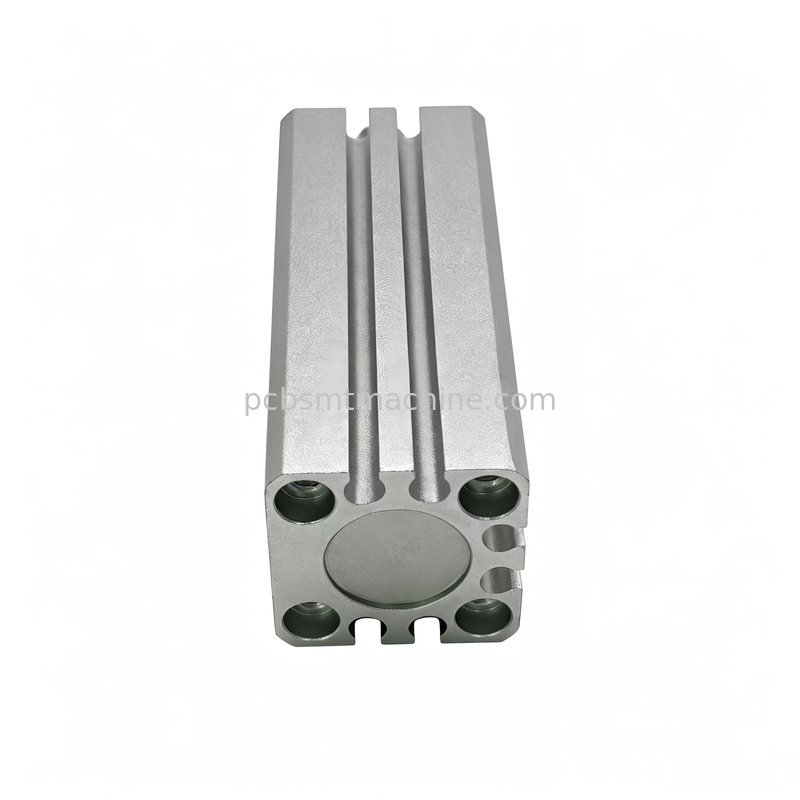

Panasonic N510067295AA Compact Air Cylinder SMC CQSB16-40DC for NPM Series SMT Mounter

1.Product Description & Introduction
N510067295AA is original Panasonic SMT spare part, built with SMC CQSB16-40DC thin air cylinder. It is specially used for nozzle switching and limiting inside NPM mounting head.
It is different from conveyor stopper cylinder N510067296AA, they cannot be interchanged. This cylinder completes precise side pushing positioning to guarantee PCB mounting accuracy. We supply brand new original and fully tested used cylinders for wholesale to global SMT factories and maintenance vendors.
2.Product Parameters

3.Product Features

• Dual part number marking (Panasonic + SMC) for easy searching and matching
• Slim compact design, fits narrow inner space of NPM mounting head
• Original SMC core with good air tightness and wear resistance, less production downtime
• Multi-hole mounting base for stable installation without offset during long-term operation
• Reserved slot for magnetic sensor to detect cylinder extension status
• 100% air leakage test before delivery, supports 24-hour continuous heavy load work
• Two stock options (new / tested used), available for bulk wholesale

4.FAQ
Q1: Which machines does it fit?
A1: All Panasonic NPM series mounters. It only works inside mounting head, not for conveyor stopper.
Q2: What is the internal cylinder model?
A2: The cylinder body is SMC CQSB16-40DC. You can search with either part number.
Q3: Can it replace N510067296AA?
A3: No. They differ in size and installation position, non-interchangeable.
Q4: Does it come with magnetic sensor?
A4: No, sensor needs to be purchased separately though the slot is reserved.
Q5: Is it compatible with old CM402 / CM602?
A5: No, it only fits NPM series mounters.
Q6: What stock options are available?
A6: Brand new original and fully tested used cylinders, bulk order supported for overseas trade.
